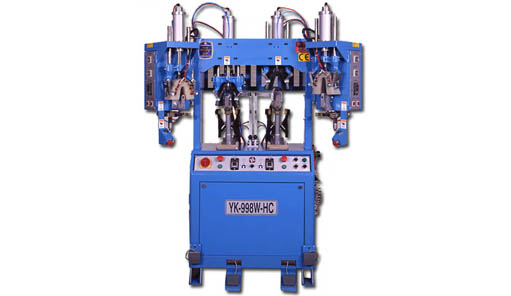

YK-998W-HC Double Cooling & Heating Backpart Moulding Machine With Flanging Wipers
YK-998W-HC Double Cooling & Heating Backpart Moulding Machine With Flanging Wipers

Certification :

Application :

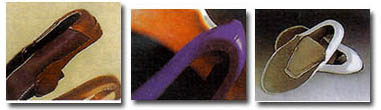

1. Backpart and heel margin flanging moulded.
2. General backpart moulded.

Characteristic:

1. Suitable for all materials better for thermoplastic material.
2. The temperature of both the inner and outer part of the mould can be adjusted freely by itself. (depending on the materia).
3. The upper pre-moulding make the toe & heel seat lasting machine work smoothly to save material & labor cost and increase output.
4. Positioning board & truing-up light device help to get accurate position.
5. Cold mould slanting to operator is convenient for moulding.
6. Custom-made outer & inner mould offers the highest accuracy.
7. Wipers were deviced with selective switch, and can be turn off if not required.
8. Purpose designed high power cooling system it can get best effect of moulding. (vaporizer temperature -20°C down)

Specification:

Dimension(mm) 1490 x 760 x 1910 Air pressure 5-6kg/cm²
Voltage 220V, 1ø:50 / 60HZ Capacity 1400-2000 Pair/8hrs
Power Consumption 2.5KW N.W / G.W 520kgs / 640kgs
