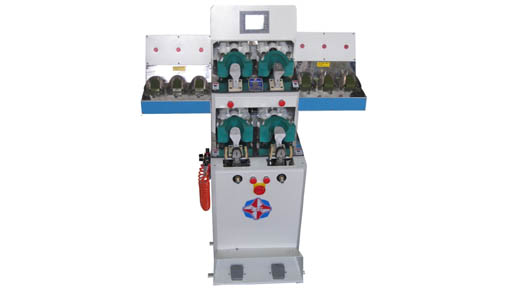

- YK-999A-BHC Microcomputer 4 Cooling & Heating Hot-Air Back Part Moulding Machine
Application :
1. Back part pre-moulding.
2. Back part & top line reshaping.
Characteristic:
1. High qiality latex material used for cold mould.
2. The temperature of both the inner and outer can be adjusted separately to meet different needs of various materials.
3. Perfect shaping effect & speed can be obtained from the cold mould after heating process.
4. No wrinkle or bubble appears in the lining after the moulding process so as to retain superior quality.
5. Faster lasting process, higher productivity and lower cost can be achieved after the moulding process.
6. The special inverse mould can be used to reshape the rejects to remove wrinkles and keep perfect appearance of topline.
7. Custom-made last mould offers the highest accuracy and easier mould changing.
8. Adjustable hot-air units can be operated separately according to different materials. High reactivating speed ensures less power consumption.
9. Uniquely designed environmentally-sound cooling system boasts the best cooling effect with high efficiency.
10. Double-layer slant operating platform confirming to ergonomics engineering enables easier operation.
11. Microcomputer-control ensures accurate temperature display and more convenient operation.
Specification:
Dimension(mm) | 1480X840X1850 |
Voltage | 220V 1ø:50 / 60HZ |
Power Consumption | 5.6KW |
Air pressure | 5-6kg/cm2 |
Capacity | 2400-4000 Pairs/8hrs |
N.W / G.W | 310kg / 360kg |
