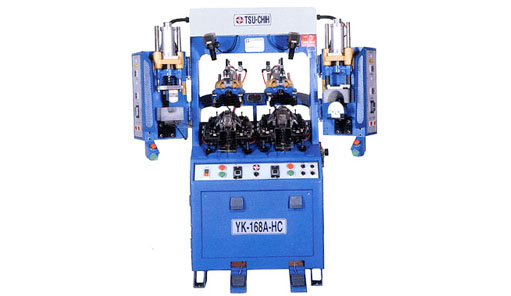

YK-168A-HC Claw Type Heating & Cooling Toe Cap Moulding Machine

Application :

Toe cap pre-moulding before forming.

Characteristic:

1. Apply to any toe puff, best if use thermoplastic film.
2. Steady claw and aiming light provide accurate moulding position.
3. Pressing device of horizontal outer mould makes the toe cap moulded solid.
4. Multi-optional released claw is suitable for different shoes.
5. Ensure no wrinkle & pleat in the lining after moulding.
6. High accuracy of the center shoe line to allow the last machine works easily and avoid the break of upper from the repeat of lasting process.
7. After shoe last is pre-shaped, insole sewing can be adjusted more accurately so that shoe upper doesn't get off the center.
8. Cooling vaporizer with patented and special fixing way of last make the change of mould easy and perfect moulding effect.

Patented:

Patented in CHINA & TAIWAN.
(We have the right to change the body design.)

Specification:

Dimension(mm)	1570 x 960 x 1730	Air pressure	5-6kg/cm²
Voltage	220V, 1ø:50 / 60HZ	Capacity	1000-1200 Pair/8hrs
Power Consumption	2.7KW	N.W / G.W	500kgs / 620kgs
