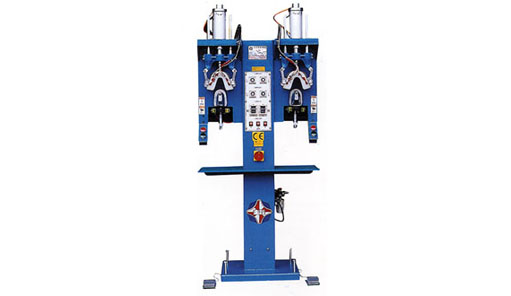

- YK-701H The Backpart Moulding Machine
Application :
Mouliding of backpart.
Characteristic:
1. The external mould adopted high class heat conducting silica gel.
2. Suitable for any kinds of materials, better for thermoplastic materials.
3. Temperature of inner and outer moulds can be adjusted according to different materials.
4. Customer-made inner and outer moulds to obtain the most accurate effect.
5. After moulding, the counter, upper and lining will be adhered and flatten, to stretch the lining, to increase upper quality and decrease defective products.
Specification:
| Dimension(mm) | 820 x 500 x 1900 | Air pressure | 4-6kg/cm² |
| Voltage | 220V, 1ø:50 / 60HZ | Capacity | 1400-2000 Pair/8hrs |
| Power Consumption | 1.8KW | N.W / G.W | 180kgs / 270kgs |
