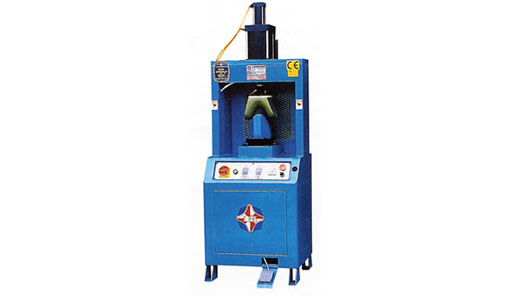

YK-511 Automatic Vamp Moulding Machine
YK-511 Automatic Vamp Moulding Machine

Application :

The curve moulding of shoe vamp and instep.

Characteristic:

1. Suitable for the pre-moulding men shoes, sandals, pumps, boots, and all kinds of upper.
2. After moulded, upper and last radian will be ashered to make shape perfect, and facilitates lasting operations reducing worktimes.
3. Temperature and time can be adjusted by different materials.
4. Changing top mould according to different upper radian.

Specification:

Dimension(mm) 720 x 480 x 1750 Air pressure 4~6 kg/cm²
Voltage 220V 1ø:50 / 60HZ Capacity 1500 Pairs/8hrs
Power Consumption 0.5KW N.W / G.W 180kgs / 260kgs
