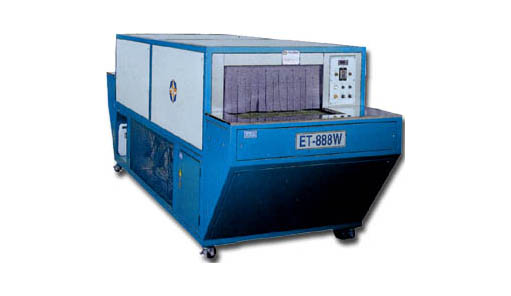

- ET-888W/ET-888WL High Efficiency Quickly Refrigerating Machine
Application :
High Efficiency Quickly Refrigerating.
Characteristic:
1. Unique design for ultra high velocity air recirculation to provide very rapid and effective cool down of shoe and lasts.
2. Purpose designed high power chillier unit.it can provide rapidly to cool down the temperature to setting point.
3. Electronic variable speed belt and it's movement by air pneumatic.
4. Fully adjustable temperature control.
5. Compact design, easy for factory layout.
6. All designed for easy operation and maintenance.
(We have the right to change the body design.)
Specification:
| Type | ET-888W | ET-888WL |
| Dimension(mm) | 2850 x 1200 x 1360 | 3500 x 1200 x 1360 |
| Voltage | 220V / 380V 3ø:50/60HZ | 220V / 380V 3ø:50/60HZ |
| Compressor | 3.5RT | 5RT |
| Power Consumption | 3.5KW | 4.7KW |
| Capacity | 2000-3000 Pairs / 8hrs | 2500-3500 Pairs / 8hrs |
| N.W / G.W | 350Kgs / 500Kgs | 520Kgs / 680Kgs |
