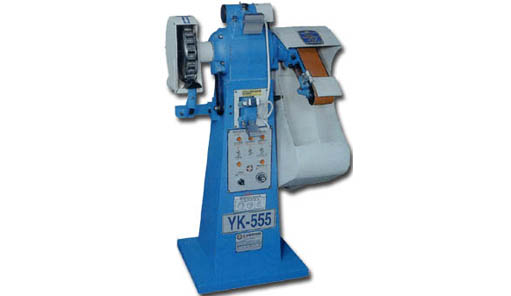

- YK-555 Sole Rubbing Trimming Machine
Application :
Grind roughly, solid lasting, massage backpart, quarter, upper, toe, top line, removing from angle condition.
Characteristic:
1. It contains five parts:
(a) Grinder: grind the relief upper under the insole, non-use of knife.
(b) High speed wheel: press the upper of insole to affix with last avoiding deformation.
(c) Massage stick: three different shape, removing the angle condition of upper, backpart, toe, quarter, top line & sewing line.
2. Heater attached with massage stick makes the upper more perfect.
3. Easy operation, less possibility of reject.
4. High power, easy maintenance and utility.
Patented:
Specification:
| Dimension(mm) | 720 x 620 x 1300 | Air pressure | 0 |
| Voltage | 220V 1ø :50 / 60HZ | Capacity | 2000-2800 Pairs/8hrs |
| Power Consumption | 0.36KW | N.W / G.W | 212kgs / 260kgs |
