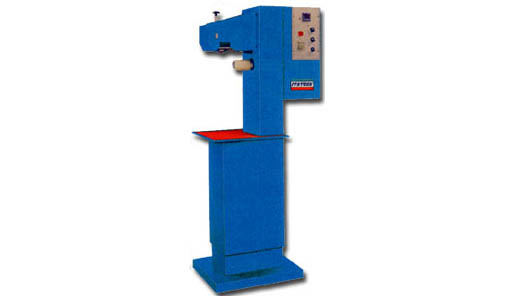

- IT-7000 Sticking Machine For Insole fixing One Form
Application :
Sticking the insole,Sticking the foot pad.
Characteristic:
1. The thermoplastic material is less expensive than nails.
2. It eliminates the operation of removing nails.
3. Lasts will not be damaged.
4. It eliminates the possibility of nails left in the machine which damages the machine itself and workers.
5. It eliminates the danger of the nails left in the shoes which will hurt the persons who wear the Shoes
6. It has less problems and longer life span.
7. Using special rubber to remove the thermoplastic material which sticks on the lasts.
Patented:
Specification:
| Dimension(mm) | 1570 x 750 x 500 | Air pressure | 4kg/cm² |
| Voltage | 220V 1ø :50 / 60HZ | Capacity | 1600 Pairs/8hrs |
| Power Consumption | 1KW | N.W / G.W | 86kgs / 140kgs |
