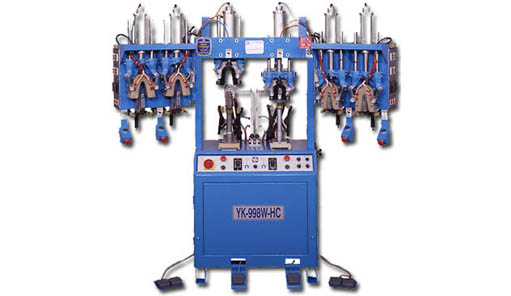

YK-998W-4HC 4 Hot & 2 Cold Stations Backpart Moulding Machine With Flanging Wipers

Certification :

Application :

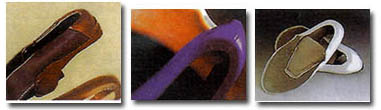

1. Backpart and heel margin flanging moulding.
2. General backpart moulded.

Characteristic:

1. Suitable for all materials better for thermoplastic material.
2. The temperature of both the inner and outer part of the mould can be adjusted freely by itself. (depending on the material).
3. High output, it can be operated in the sewing process for the smooth and preparation of the moulding line.
4. The upper pre-moulding make the toe & heel seat lasting machine work smoothly to save material & labor cost and increase output.
5. Four hot moulds are suitalble for the upper thick or heated under the lower temperature.
6. Hot mould was designed to adjust the angel under ergonomics matters.
7. Positioning board & truing-up light device help to get accurate position.
8. Cold mould slanting to operator is convenient for moulding.
9. Custom-made outer & inner mould offers the highest accuracy.
10. Wipers were deviced with selective switch, and can be turn off if not required.
11. Adjustable clippers help to cause the fastening of the shoe uppers and last model to be 100% accuracy.
12. Purpose designed high power cooling system it can get best effect of moulding. (vaporizer temperature -20°C down)

Specification:

Dimension(mm)	2090 x 760 x 1910	Air pressure	6-7kg/cm²
Voltage	220V, 1ø:50 / 60HZ	Capacity	1400-2000 Pair/8hrs
Power Consumption	4.4KW	N.W / G.W	580kgs / 700kgs
