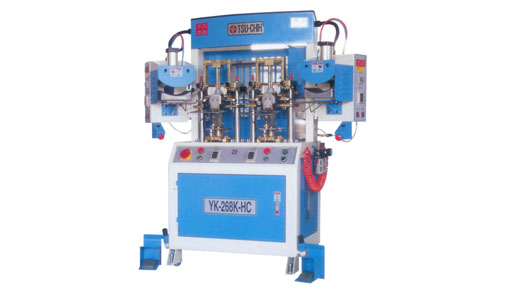

YK-268K-HC Double Heating & Cooling Toe Upper Formming Machine

Application :

Toe cap pre-shaping (suitable for Stitch Down shoes, California shoes and various kinds of lasting shoes)

Characteristic:

1. Applicable for any toe puff material, better for thermoplastic material.
2. Uniquely designed pressurization outer mould ensures a more compact shaping effect.
3. Shoe upper positioning board device allows precise and convenient placing of shoe upper,thus making the operation process easier and more accurate.
4. After the pre-shaping of lasting shoe,the insole sewing can be adjusted better to avoid crooked upper defect.
5. Highly accurate shoe centre line due to pre-moulding enables easier last insertion and smooth lasting process to achieve less waste as well as better yields.
6. Special shoe last mould positioning method help facilitate mould replacing.
7. Hot mould with vapor equipment makes shoe upper more elastic and shining during the heating process.

Specification:

Dimension(mm)	1500 x 630 x 1700	Air Pressure	5-6kg/cm²
Voltage	200V 1ø:50 / 60HZ	Capacity	1400-2000 Pair/8hrs
Power Consumption	3.9KW	N.W/G.W	400kgs / 500kgs
