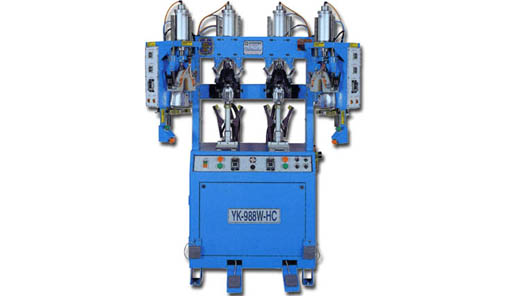

- YK-988W-HC Double Hot & Cold Backpart Moulding Machine For Stitch-Down Shoes
Certification :
Application :
1. Stitch-down shoe backpart moulded
2. General backpart moulded
Characteristic:
1. Suitable for all materials better for thermoplastic material.
2. The temperature of heat inner & outer mould can be setted separately (according to different materials).
3. The flanging wiper & positioning board device of cold mould help to get the perfect stitch-down moulding.
4. Patented flanging wiper was designed to change & adjust easy for different shoe size.
5. Customer-made inner & outer mould, non-warp of shoe shape.
6. High power cooling system for environment protect purpose it can get the best effect.
7. Flanging wiper is double-duty for working or not.
Patented:
Patented in CHINA & TAIWAN.
Specification:
| Dimension(mm) | 1490 x 630 x 1910 | Air pressure | 5-6kg/cm² |
| Voltage | 220V, 1ø:50 / 60HZ | Capacity | 1400-2000 Pair/8hrs |
| Power Consumption | 2.5KW | N.W / G.W | 480kgs / 600kgs |
