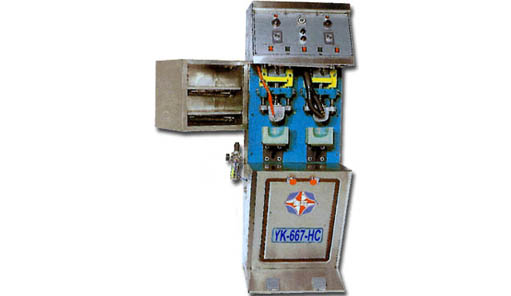

- YK-667-HCO Toe Cap Moulding Machine
Application :
Toe Cap moulding
Characteristic:
1. Apply to any toe puff material, best if use thermoplastic film.
2. Attached heat oven to increase output and short the heating time.
3. After pre-moulding of toe cap, the shoe last insertion is more easier.
4. After moulding, the upper and lining will be adhered tightly to ensure no wrinkle & pleat happened.
5. The toe cap is pre-shaped, insole fabric sewing can be adjusted more accurately so that shoe upper doesn't get off the center line.
6. Custom-made last mould offers the highest accuracy.
7. Purposed model of cooling & heating or double cooling & heating are adapted to the requirement of producing.
Patented:
Patented in CHINA & TAIWAN.
Specification:
| Dimension(mm) | 800 x 660 x 1680 | Air pressure | 5-6kg/cm² |
| Voltage | 220V, 1ø:50 / 60HZ | Capacity | 800-1200 Pair/8hrs |
| Power Consumption | 3.9KW | N.W / G.W | 160kgs / 240kgs |
