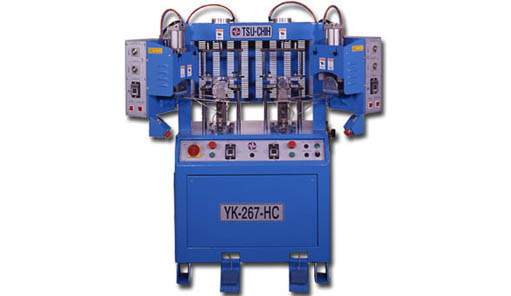

- YK-267-HC Double Hot & Cold Backpart Moulding Machine For Stitch-Down Shoes
Application :
Stitch-down toe upper preshaped
Characteristic:
1. Applicable for any material of upper and lining.
2. Ensure no wrinkle & pleat in the lining after moulded.
3. Custom-made last mould offers the highest accuracy.
4. The best accuracy of upper stitch-down is available with our patented cold clamp plate design.
5. Adjustable mould which is easy to change and operate help to low down the cost and raise the efficiency of producing.
6. High power cooling system for environment protect purpose it can get the best effect.
Patented:
Patented in CHINA & TAIWAN.
Specification:
| Dimension(mm) | 1500 x 630 x 1420 | Air pressure | 5-6kg/cm² |
| Voltage | 220V, 1ø:50 / 60HZ | Capacity | 1200-1500 Pair/8hrs |
| Power Consumption | 3.9KW | N.W / G.W | 350kgs / 450kgs |
