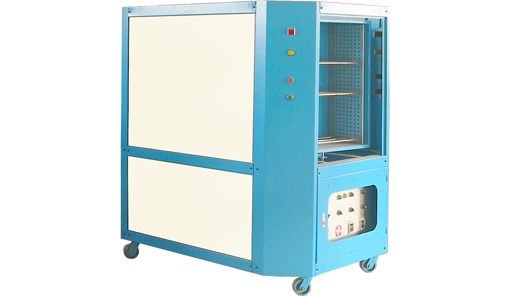

- ET-222AH-S Vacuum Sulphur-Adding Machine
Application :
Vacuum refrigerating shaping.
Characteristic:
1. Cold shrinking and heat expanding principle adapted in the design ensures vacuum quick-freezing effect.
2. The speedy vacuum-pumping enables easier eliminating of water and glue so as to strengthen the cooling effect and keep the shoes from going mouldy.
3. Complete sealing for cold shaping guarantees prefect cooling effect and saves human labor, power consumption and last as compared with traditional conveyor device.
4. Small and compact design that saves space and cooling time as compared with conventional conveyor-type machines.
Specification:
| Dimension(mm) | 1500X1200X1600 |
| Voltage | 380V 3ø :50/60HZ |
| Power Consumption | 4KW |
| Air Pressure | 5~6Kg/cm² |
| Capacity | 960 Pairs/8hrs |
| N.W./G.W. | 500/580Kg |
| Box Dimension (mm) | 720H X 790W X 345L |
